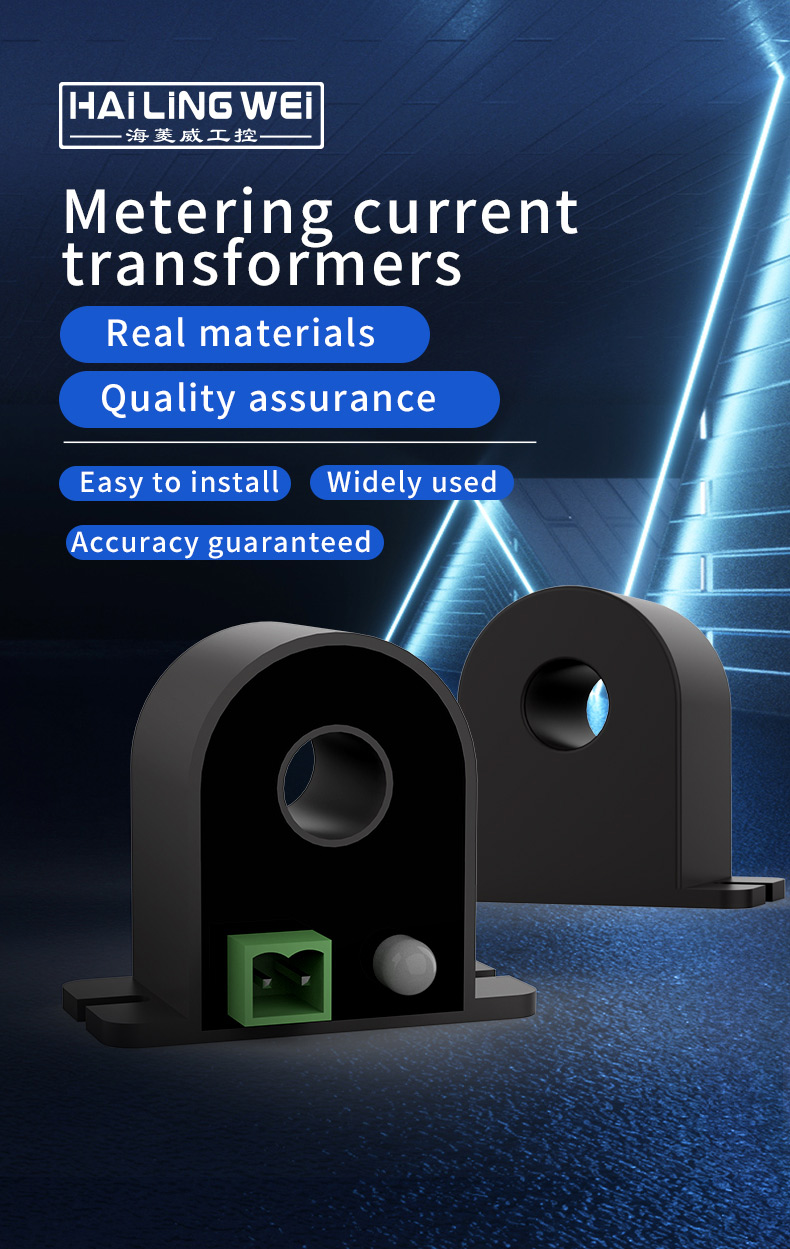

Transformer
Features：

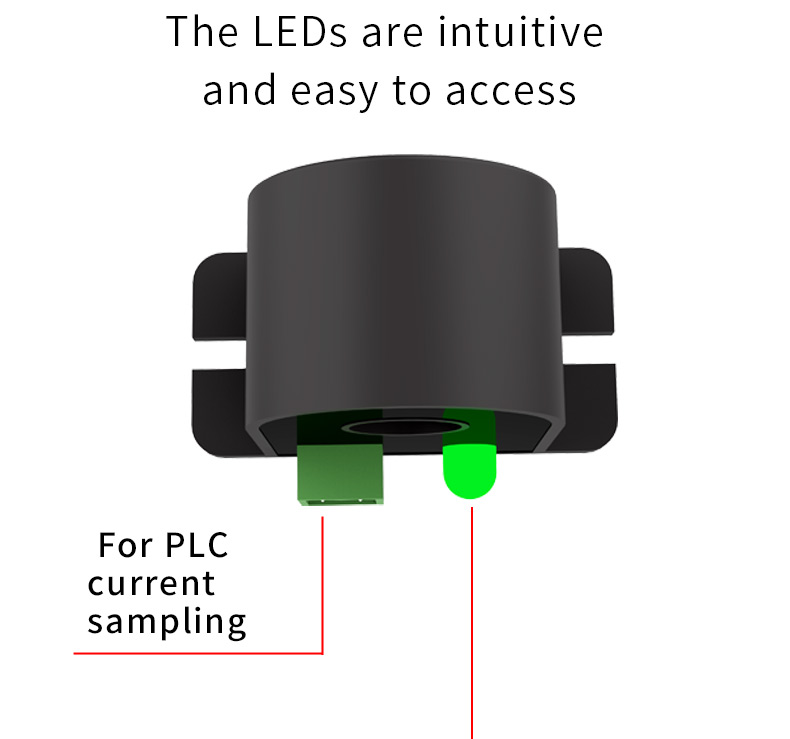

The housing is fully enclosed with mounting holes, LED indicator warning is

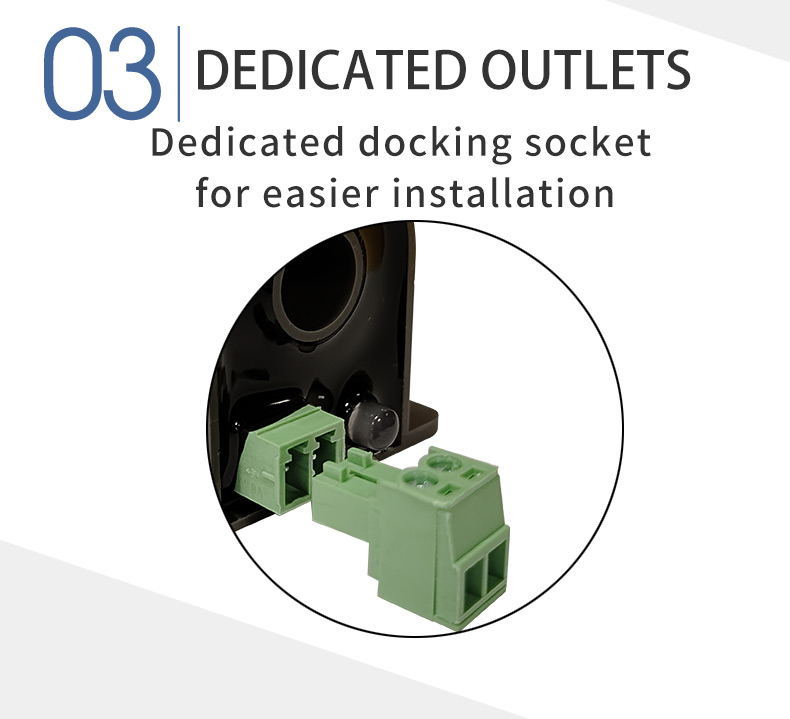

intuitive and easy to access, and the quick-connect terminals are easy to
assemble.
Material：

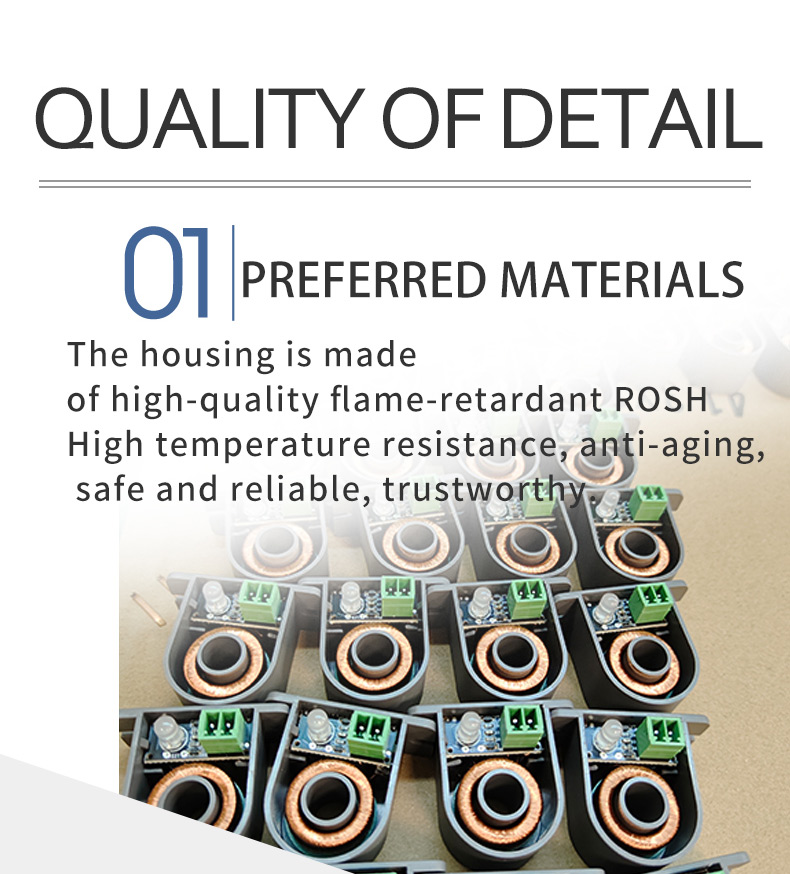

The shell is made of high-quality flame retardant ROHS material,
anti-high temperature and anti-aging, safe and reliable, and epoxy
resin encapsulation is moisture-resistant, which is trustworthy.

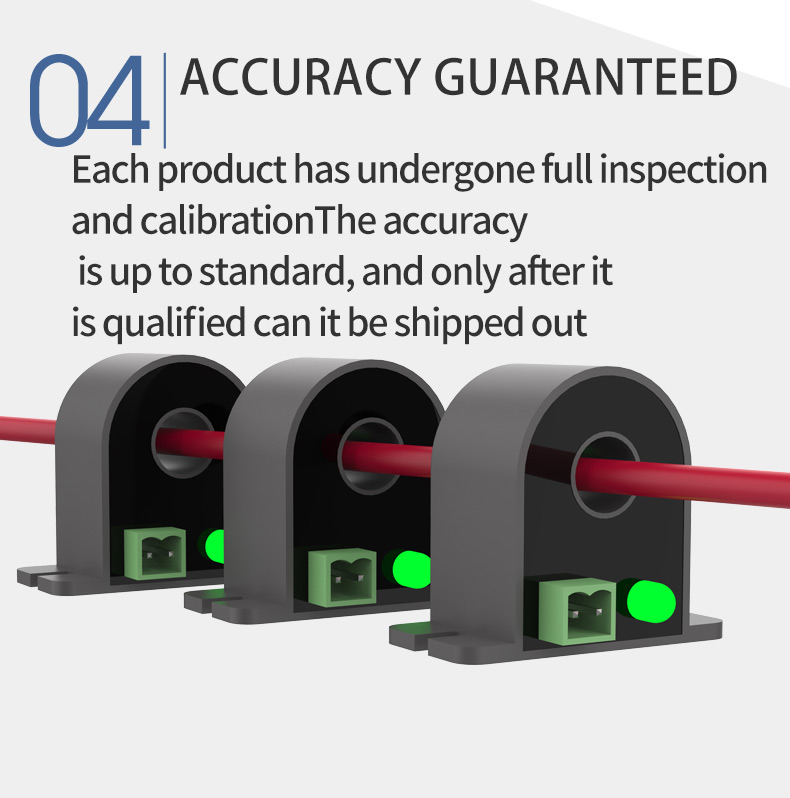

Accuracy Guarantee:
Each product has been fully picked and checked, the accuracy
reaches the standard, and it can be confirmed to be qualified
before it leaves the factory.

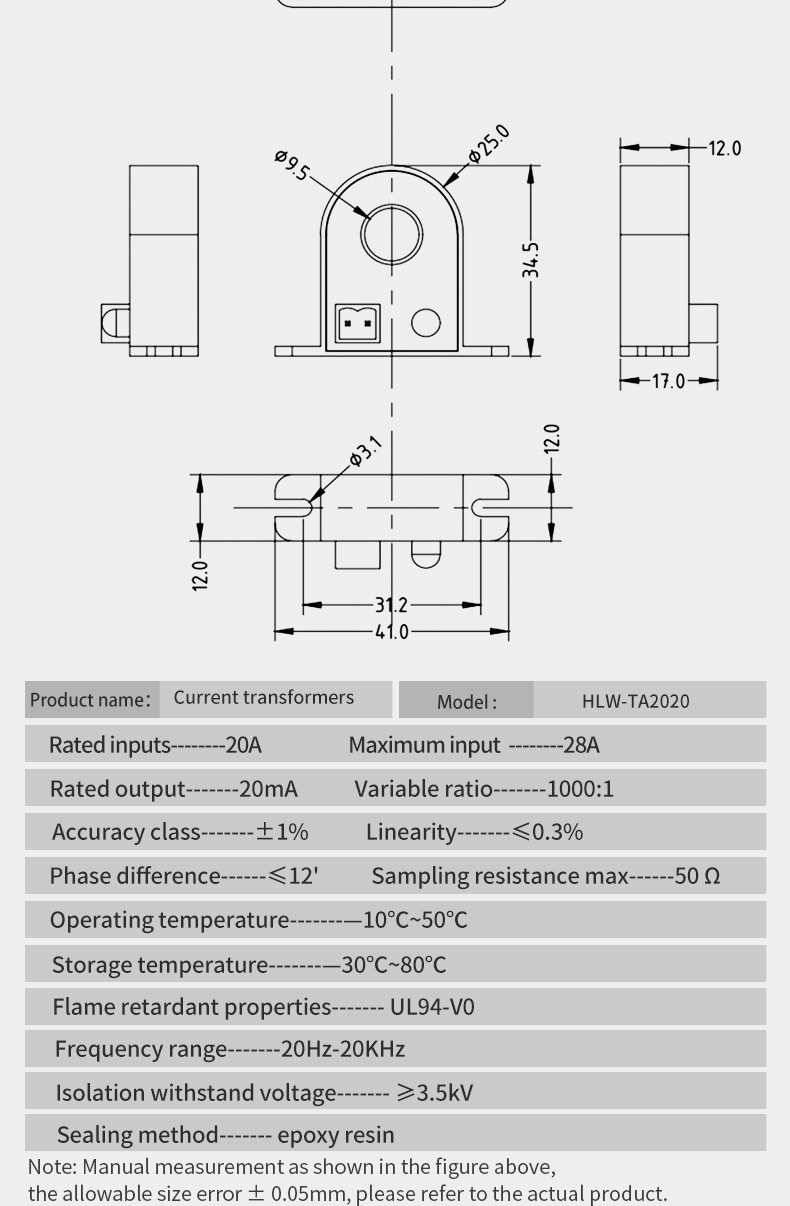

1 | Rated inputs | 20A |
2 | Maximum input | 28A |
3 | Rated output | 20mA |
4 | Variable ratio | 1000:1 |
5 | Accuracy class | ±1 % |
6 | Linearity | ≤0.3% |
7 | Phase difference | ≤12' |
8 | Sampling resistance max | 50 Ω |
9 | Operating temperature | -10℃~50℃ |
10 | Storage temperature | -30℃~80℃ |
11 | Flame retardant properties | UL94-V0 |
12 | Frequency range | 20Hz-20KHz |
13 | Isolation withstand voltage | ≥3.5kV |
14 | Sealing method | epoxy resin |
